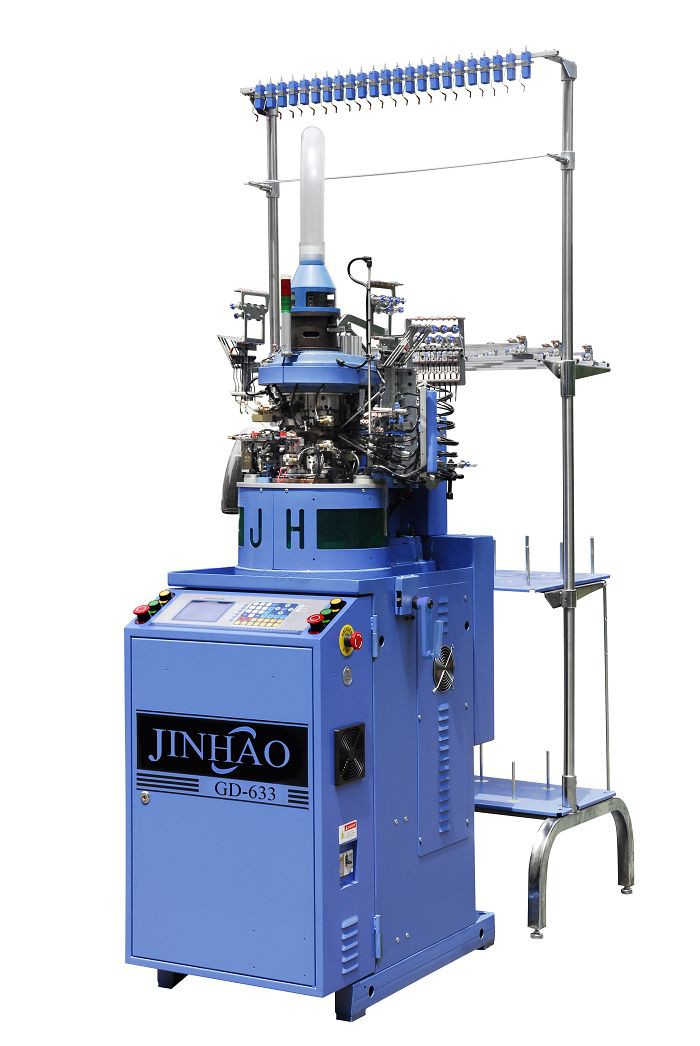

GD-633 Two Routes Three Color Fully Computerized Double Cylinder Socks Knitting Machine

GD-633 Two Routes Three Color Fully Computerized Double Cylinder Socks Knitting Machine

GD-633 Fully Computerized Double Cylinder Knitting Machine Of Socks This socks manufacturing machine is the latest development of two routes three color fully computerized double cylinder socks knitting machine. lt’s specialized in producing men’s and ladies socks of plain weave/rib/face side jacquard/ridge ...

GD-633

Fully Computerized Double Cylinder Circular Knitting Machine Of Socks

This socks manufacturing machine is the latest development of two routes three color fully computerized double cylinder socks knitting machine. lt's specialized in producing men’s and ladies socks of plain weave/rib/face side jacquard/ridge design and three color jacquard socks


No drum, automatic, full computer type

Electrical control shuttle conversion and pin

The servo motor and servo driver

Uses two-way shuttle inlet device, a total of 9 shuttle, 2 groups of scissors

6 color socks for a shuttle weaving continuous exchange

Multiple fault detection device (broken, broken needle , power, electronic failure)

Automatic feeding device

Downward direction from socks function and automatic stocking turning device

The same row can be woven of three colors, the rubber band can be spaced weaving

Textile“Y”or“W”heel heel

Use the needle cylinder mechanism becomes shorter, suitable for high speed motion, jacquard and box uses the integrated processing, can reduce the noise

Before and after reinforcement.


The use of LCD picture language

USB system

High performance, high precision of needle selection(Section 8)

Needle selection automatic check function

The electronic automatic check function

The flowers have no choice function


Specifications:

Cylinder Diameters:4”

Number of needles: 96N-224N

Revolution:220Rpm-280Rpm

Electric: three-phase 220v-380v,50/60HZ

Power Cylinder:5.5-6kg pressure

Motor:1.3-1.5kw

Net weight:400kg

Gross weight: 450kg

Packing Dimension (l*w*h): 97cm*90cm*220cm

Machine size (l*w*h):100*160*235cm
